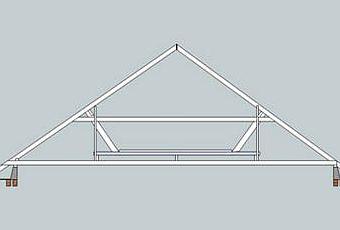

The most taxing mission yet (mentally at least) has been gathering the measurements necessary to arrive at the above sketch of the main roof trusses. It looks so simple now it's done, but gave me major headaches as every time I tried to draw it in Sketchup major bits refused to meet where they should. Unsurprisingly the bulk of the problems were my fault, usually not notating my on-site sketches clearly enough, thinking I'd measured from one point when in fact I'd measured from another. The same issue applied when translating the measurements on the computer, starting a distance guide from the wrong point etc. After a few trips back and forth from the bungalow I got it sorted, and was able to email the crucial info to Kuba (our designer). The purlins in the sketch (long chunky timbers running the length of the roof to support the rafters - barely visible on the skethch as they're end on) still don't sit quite where they should, but I blame that on the impossibility of using perfectly straight lines to represent a fifty-year-old timber structure.
