Iowa State Engineers Improve Turbine Cooling to Make Engines More Efficient

Posted on the 13 August 2013 by Dailyfusion @dailyfusion

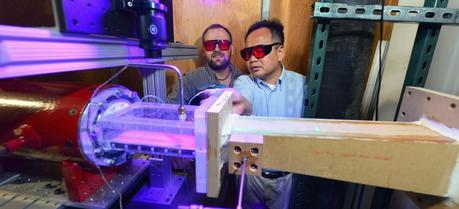

Blake Johnson and Hui Hu (Credit: Bob Elbert / Iowa State University) Blake Johnson and Hui Hu (Credit: Bob Elbert / Iowa State University)

As with all cyclic heat engines, higher combustion temperatures can allow for greater efficiencies. However, temperatures are limited by ability of the steel, nickel, ceramic, or other materials that make up the engine to withstand high temperatures and stresses. Iowa State University’s Hui Hu and Blake Johnson are developing new technologies to accurately test and improve cooling strategies for gas turbine engines. Their current focus is to improve the turbine blades spun by the engine’s exhaust. Those blades at the back of the engine drive front blades that force compressed air into the combustion chamber.

The basic operation of the gas turbine is similar to that of the steam power plant except that air is used instead of water. Fresh atmospheric air flows through a compressor that brings it to higher pressure. Energy is then added by spraying fuel into the air and igniting it so the combustion generates a high-temperature flow. This high-temperature high-pressure gas enters a turbine, where it expands down to the exhaust pressure, producing a shaft work output in the process. The turbine shaft work is used to drive the compressor and other devices such as an electric generator that may be coupled to the shaft. The energy that is not used for shaft work comes out in the exhaust gases, so these have either a high temperature or a high velocity. The purpose of the gas turbine determines the design so that the most desirable energy form is maximized. Gas turbines are used to power aircraft, trains, ships, electrical generators, or even tanks.

“Right now, the current state of the art for engine combustion is about 3,000 degrees Fahrenheit,” said Hu, an Iowa State professor of aerospace engineering. “That temperature is above the melting temperature of all engine materials. If you don’t have cooling technologies, all the material will melt.”

One technology is to build hollow turbine blades and blow coolant through an arrangement of holes in the blades. The holes create a cooling film between the hot exhaust gases and the turbine blades, allowing the blades to keep their shape and strength.

But now, as manufacturers experiment with biofuels and efficiency improvements, Hu said combustion temperatures are heading higher and higher. And so it’s getting more and more important for engineers to research and develop heat-resistant materials and cooling technologies. Better cooling can mean fuel savings, longer-lasting parts and significant cuts in operating costs.

For the past 19 months, Hu and Johnson, an Iowa State post-doctoral research associate in aerospace engineering, have been working with the GE Global Research Center in Niskayuna, N.Y., to study turbine blade cooling.

Rather than trying to replicate the high temperatures inside a jet engine, the engineers have developed new technologies and room-temperature tests to study the effectiveness of cooling hole shapes, arrangements and the cooling film they create over a turbine blade.

They’ve built an experimental rig that places a model turbine blade at the bottom of a wind tunnel’s test section. Jets of pure nitrogen or carbon dioxide are blown through the model blade’s cooling holes. The main stream of the wind tunnel blows oxygen-rich air above the test blade. Using oxygen-sensitive paint on the model blade, an ultraviolet light source and a digital camera, Hu and Johnson can see if the cooling film keeps oxygen molecules from the main stream off the model blade.

“If we find an oxygen molecule on the model blade, we know that the cooling stream didn’t create a barrier,” Hu said.

So far, the Iowa State engineers have been working with low-speed flows. They’re now building and testing another experimental rig that can handle high-speed flows approaching the speed of sound.

They’ve also been using an advanced flow diagnostic technique called particle image velocimetry—seeding the test flows with tiny particles that can be photographed with a laser and camera – to record and measure what happens when gases blow out of the cooling holes.

Those tests provide data about flow structure, thickness of the cooling film, density ratios, velocity ratios and other measurements related to cooling effectiveness.

“The big goal of this study is to find anything that GE can do to improve the function of its film cooling system,” Johnson said. “Better cooling equals longer-lasting blades. And that could be worth billions of dollars across a fleet of engines.”
